Thermal Imaging in Energy Audits: Technology, Techniques, and Analysis

In the quest to reduce energy consumption and improve the efficiency of homes and buildings, thermal imaging has become an invaluable tool. Energy audits are essential for pinpointing areas where energy is being wasted, and thermal imaging helps auditors identify insulation gaps, air leaks, and inefficiencies in a way that traditional methods cannot. This technology provides an accurate, non-invasive way to assess a building's energy performance, allowing homeowners and businesses to take actionable steps towards reducing energy costs and improving comfort.

In this article, we’ll explore how thermal imaging works in energy audits, the techniques involved, and the analysis behind the findings, helping you understand how this cutting-edge tool can significantly enhance energy efficiency.

What is Thermal Imaging?

Thermal imaging uses infrared cameras to detect and visualize the heat emitted by objects. Every object emits infrared radiation based on its temperature, and the camera captures this radiation, turning it into a visual image. These infrared images—known as thermograms—highlight temperature variations, allowing professionals to see temperature differences that aren’t visible to the naked eye.

In the context of an energy audit, thermal imaging reveals potential issues such as:

• Heat loss or gain through walls, windows, and ceilings

• Air leaks around doors and windows

• Poor insulation or gaps in insulation

• HVAC system inefficiencies

• Moisture intrusion or mold growth

The ability to detect these issues early on can save homeowners and businesses substantial amounts in energy costs and prevent long-term damage to the building.

How Thermal Imaging Works in Energy Audits

During an energy audit, thermal imaging is typically one of the first tools used to assess a building's energy efficiency. It provides real-time, actionable data by using infrared cameras that detect heat and cold spots across the building's envelope. The process can be broken down into several key steps:

1. Preparing the Building for Scanning: Before starting the thermal imaging process, the building should be prepared. For maximum accuracy, the temperature difference between the inside and outside of the building should be at least 10°F (5.5°C). Auditors often conduct scans during colder months or when the temperature is significantly lower outside, which makes it easier to detect heat loss from the building.

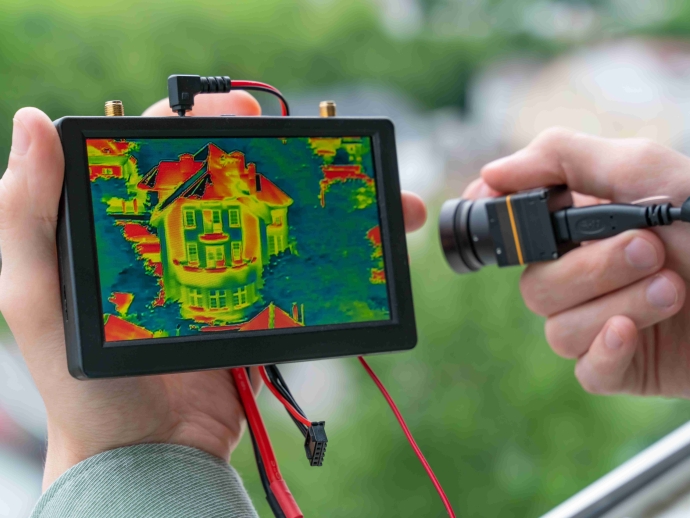

2. Conducting the Scan: The auditor uses an infrared camera to scan the building’s exterior and interior. The camera captures thermal energy and creates a color-coded image where warmer areas appear in red, orange, or yellow, while cooler areas show up in blue or purple. These images allow auditors to quickly pinpoint problem areas such as leaks, drafts, or insufficient insulation.

3. Identifying Hot and Cold Spots: The thermal images reveal areas where heat is escaping or entering the building. For example, areas around windows, doors, and walls with inadequate insulation will show as cooler than the surrounding areas. The auditor can also assess specific components like ductwork or electrical systems, identifying potential issues like leaks, overheating, or inadequate sealing.

4. Assessing Moisture Issues: Thermal imaging can also help detect moisture problems. Moisture often causes cooler areas on the walls, ceilings, and floors, which can show up clearly on thermal images. This is especially useful for identifying hidden leaks, mold growth, or areas of water intrusion that may not be immediately visible.

Techniques Used in Thermal Imaging for Energy Audits

Thermal imaging in energy audits involves several techniques that enhance the accuracy and efficiency of the process. These techniques can be applied in combination with other diagnostic methods for a thorough evaluation.

1. Exterior Inspections: A thermal scan of the exterior of the building can identify areas where heat is being lost, such as cracks in the building's structure, poor sealing around windows and doors, or gaps in insulation. This scan is often done at night or in the early morning when the temperature difference between the inside and outside is most noticeable.

2. Interior Inspections: For a comprehensive analysis, the auditor will also perform thermal scans inside the building. These scans focus on areas where air leaks or insulation issues are most likely to occur, such as along baseboards, ceilings, floors, and near electrical outlets. By identifying these areas, homeowners can address specific issues that contribute to unnecessary energy loss.

3. Blower Door Tests with Thermal Imaging: A blower door test is a diagnostic technique that measures the airtightness of a building by using a fan to depressurize the space. When combined with thermal imaging, this test helps auditors pinpoint exactly where air leaks are occurring. The infrared camera detects cold air entering the home as the blower door test simulates high-pressure conditions, making it easier to locate specific sources of drafts.

4. HVAC System Evaluation: Thermal imaging can also be used to evaluate the performance of heating, ventilation, and air conditioning (HVAC) systems. The infrared camera can spot issues like air leakage in ducts, heat loss through ducts, and insufficient insulation around HVAC units. By identifying these inefficiencies, homeowners can address the root causes of higher energy bills.

5. Detecting Thermal Bridging: Thermal bridges are areas of a building where heat is conducted more easily through materials such as concrete, steel, or poorly insulated sections. Thermal imaging allows auditors to locate these thermal bridges, which can lead to significant heat loss and reduced energy efficiency. Once identified, steps can be taken to improve insulation in these areas.

Analysis of Thermal Imaging Data

The most important part of any energy audit is the analysis of the thermal data collected. After capturing the infrared images, the auditor will review the thermograms to assess the severity of any issues. Key analysis points include:

• Temperature Differences: The auditor will compare the temperatures of various areas in the building to determine if they fall within acceptable ranges. For example, a temperature difference of several degrees in a wall or ceiling might indicate inadequate insulation. This information helps to prioritize which areas need immediate attention.

• Air Leakage: Air leaks can be especially costly in terms of energy loss. The thermal scan helps pinpoint where air is infiltrating or escaping, allowing for more precise sealing and weatherstripping of doors, windows, and vents.

• Energy Efficiency Improvements: Once the problem areas are identified, the auditor will recommend solutions. These could include adding insulation, improving sealing, or upgrading windows and doors. Thermal imaging helps auditors focus on the areas that will have the greatest impact on energy savings.

• Estimating Costs: Based on the findings, the auditor can provide an estimate of the potential cost savings from making the recommended improvements. This helps homeowners understand the return on investment and make informed decisions about upgrades.

Benefits of Thermal Imaging in Energy Audits

Thermal imaging offers several key benefits in energy audits:

1. Non-Invasive: Thermal imaging is non-destructive, meaning it does not require tearing down walls or making physical alterations to the building. It allows auditors to assess the energy efficiency of a building without causing any damage.

2. Accurate and Fast: Infrared cameras provide precise measurements of temperature variations, enabling auditors to pinpoint issues quickly and accurately. This speeds up the audit process and ensures that no hidden inefficiencies are overlooked.

3. Comprehensive Analysis: Thermal imaging allows auditors to examine the building as a whole, identifying both visible and hidden problems that could be contributing to energy waste. From insulation gaps to hidden leaks, thermal images provide a complete picture of a building’s energy performance.

4. Long-Term Savings: By identifying energy inefficiencies and offering targeted solutions, thermal imaging helps homeowners make improvements that lead to long-term savings on energy bills. The initial cost of an energy audit can be quickly recouped through improved efficiency and lower energy costs.

Conclusion

Thermal imaging has revolutionized the way energy audits are conducted. Its ability to identify hidden inefficiencies, air leaks, and insulation gaps provides homeowners with a clear path to improving energy efficiency and reducing costs. By using this technology alongside other energy audit techniques, auditors can offer a comprehensive and accurate analysis of a building’s energy performance. With the insights gained from thermal imaging, homeowners can take actionable steps toward making their homes more energy-efficient, environmentally friendly, and cost-effective.
