Thermal Imaging in Energy Audits: Technology, Techniques, and Analysis

Have you ever wondered how to make your home more energy-efficient but weren’t sure where to start? Or maybe you’ve noticed your energy bills creeping up, but it’s hard to pinpoint why? I totally get it—figuring out where all that wasted energy is going can feel like a mystery. But here’s the good news: thermal imaging is here to help! This powerful technology can reveal hidden energy issues in your home, and it’s a game-changer when it comes to energy audits.

In this article, we’ll take a deep dive into thermal imaging, explaining how it works, its role in energy audits, and how it can help you save money and improve your home’s energy efficiency. So, let’s break it down and get you on the path to a more energy-efficient and cost-effective home!

What is Thermal Imaging?

Thermal imaging is a technology that uses infrared cameras to detect heat patterns and temperature differences in a given area. Unlike visible light cameras that capture what’s in front of them, thermal cameras "see" heat energy emitted by objects or surfaces. Every object emits infrared radiation, and the amount of radiation is related to its temperature. The camera captures these radiation patterns and translates them into thermal images or heat maps, showing hot and cold spots in vivid colors.

In the context of energy audits, thermal imaging can be used to identify areas in a home or building where energy is being lost, often without you even knowing it. This is particularly useful because many energy inefficiencies—like drafts, poor insulation, or air leaks—are invisible to the naked eye.

How Does Thermal Imaging Work in Energy Audits?

Thermal imaging is one of the most effective tools used in energy audits to identify energy losses and inefficiencies. Here's how it fits into the audit process:

1. Identifying Heat Loss

One of the biggest challenges in maintaining an energy-efficient home is preventing heat loss. Whether it's from gaps around doors and windows, poorly insulated walls, or a roof that needs attention, heat can escape easily. Thermal imaging helps pinpoint exactly where that heat is escaping by showing temperature differences on surfaces like walls, ceilings, and floors.

For instance, a thermal camera will highlight cold spots near windows, indicating drafts or inadequate insulation. If you’re losing heat through your attic, the camera will show you where the insulation is lacking or damaged.

2. Detecting Air Leaks and Drafts

Air leaks are a major source of energy loss. Drafts around doors, windows, and even electrical outlets can make your heating and cooling systems work overtime, causing your energy bills to rise. Thermal imaging cameras reveal these hidden leaks by showing temperature variations. This allows you to quickly locate the problem areas, so you can seal them up with weatherstripping or caulk.

3. Evaluating Insulation Effectiveness

Insulation plays a critical role in keeping your home energy-efficient, but how do you know if it’s doing its job? Thermal imaging can help you see if certain areas of your home are under-insulated or have gaps in the insulation. Inadequate insulation is one of the most common reasons for energy waste, especially in the attic or exterior walls.

When thermal imaging is used to scan a wall or ceiling, you’ll be able to see if the insulation is evenly distributed or if there are gaps where heat is escaping. Identifying these areas allows you to make targeted improvements that will pay off in the long run.

4. Checking for Moisture and Mold

Another benefit of thermal imaging is its ability to detect moisture issues, which are often linked to energy inefficiency. Moisture can cause structural damage and lead to mold growth, both of which can affect your home’s energy performance.

Thermal cameras can reveal areas of high moisture content because they often appear cooler than surrounding dry areas. If moisture is trapped in insulation or behind walls, thermal imaging can help detect it before it turns into a bigger problem.

Techniques in Thermal Imaging for Energy Audits

Now that you know how thermal imaging works, let’s look at some of the techniques used during an energy audit to make the most of this technology.

1. Pre-Audit Setup

Before using thermal imaging during an energy audit, the technician will typically prepare the home by closing all windows and doors and ensuring that the HVAC system is running. This helps create a controlled environment so the thermal camera can detect temperature differences more easily. The auditor may also adjust indoor and outdoor temperatures to ensure that temperature contrasts between the inside and outside of the home are significant enough to identify heat loss.

2. Thermal Scanning

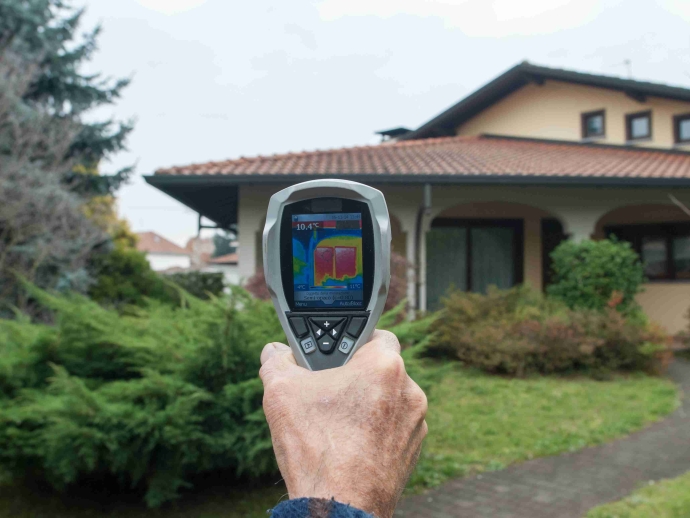

During the audit, the thermal camera will be used to scan various areas of the home, including exterior walls, ceilings, windows, doors, and the attic. The auditor will focus on areas where energy loss is most likely, including poorly insulated sections, gaps around windows, and places where air leaks might occur.

3. Infrared Temperature Readings

In addition to capturing thermal images, the infrared camera will also provide numerical temperature readings. These readings allow the auditor to assess the severity of energy loss. For example, if a window has a significant temperature difference compared to the surrounding wall, the auditor can conclude that it’s a source of heat loss.

4. Post-Audit Reporting and Analysis

After the thermal scans are complete, the auditor will analyze the thermal images and temperature readings to create a detailed report. This report will highlight areas where energy loss is occurring and offer recommendations for improvements. These might include sealing air leaks, upgrading insulation, or replacing windows. The thermal images are often included in the report to visually show the problem areas.

Benefits of Thermal Imaging in Energy Audits

Thermal imaging technology offers a range of benefits for homeowners looking to improve energy efficiency:

• Precision: Thermal imaging allows for precise detection of heat loss, air leaks, and insulation gaps, making it easier to identify and address specific issues.

• Non-Invasive: Unlike other methods, thermal imaging doesn’t require invasive procedures like tearing down walls or ceilings to identify hidden problems.

• Time-Saving: Thermal imaging can quickly highlight problem areas, reducing the time needed for a thorough energy audit.

• Cost Savings: By identifying energy inefficiencies, homeowners can make targeted improvements that reduce energy bills over time.

• Improved Comfort: Addressing air leaks, poor insulation, and moisture problems can lead to a more comfortable living environment, with fewer drafts and more consistent indoor temperatures.

Analyzing the Data: How Thermal Imaging Helps You Save Energy

Once the thermal imaging results are in, the analysis phase begins. The goal is to understand where your home is losing energy and how to fix it effectively. Here are a few ways to use the thermal data:

1. Prioritize Repairs

The thermal images and temperature readings will highlight the areas of your home that need the most attention. For example, if the images show large temperature differences around a window, this suggests it’s a major culprit for energy loss. This allows you to prioritize repairs and improvements that will have the most significant impact on your energy bills.

2. Track Improvements

Thermal imaging can be used before and after repairs to track the effectiveness of the changes made. After sealing air leaks or upgrading insulation, you can take follow-up thermal scans to ensure that the problem has been addressed.

3. Long-Term Energy Savings

By using thermal imaging to identify and correct energy inefficiencies, you can lower your energy consumption over time. This leads to lower utility bills and a smaller environmental footprint. Plus, improvements like better insulation and sealed windows can increase your home’s resale value, making thermal imaging a smart investment.

Conclusion

Thermal imaging has revolutionized the way we conduct energy audits, making it easier than ever to identify inefficiencies in our homes. By providing detailed, non-invasive insights into temperature differences, thermal imaging helps homeowners pinpoint exactly where energy is being wasted and take action to fix it. From detecting heat loss and air leaks to evaluating insulation, this technology is an invaluable tool for creating a more energy-efficient home.

So, if you’re ready to take control of your energy usage, consider scheduling an energy audit that includes thermal imaging. It’s a quick, effective, and cost-efficient way to save money and reduce your environmental impact. Let’s embrace this cutting-edge technology and make our homes more energy-efficient than ever!
